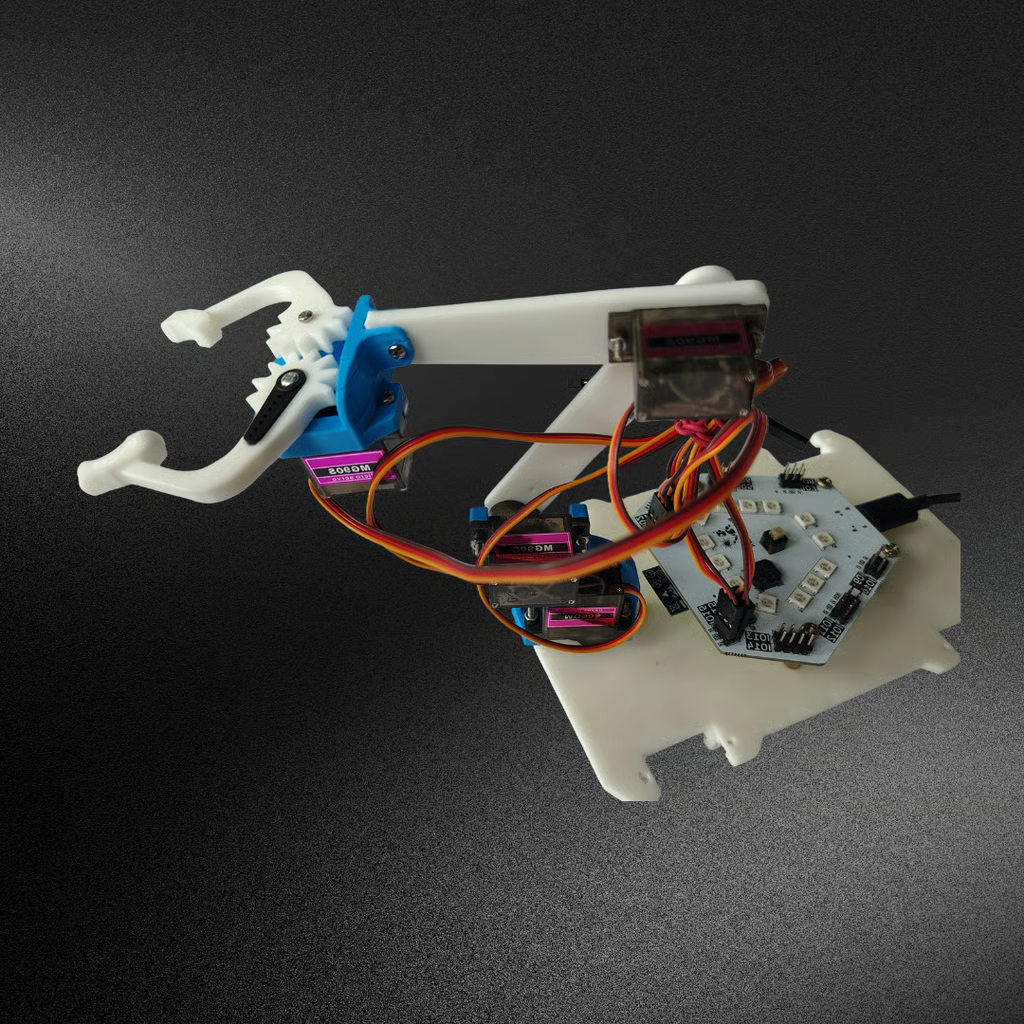

Grade 5 STEM Activities: Gripper Robot Project Using KAIO Board
STEM education helps students understand science, engineering, coding, and robotics through practical activities and real-world applications. In this exciting Grade 5 STEM Activities project, students will learn how to build and program a Gripper Robot using the KAIO Board.
This hands-on robotics project introduces students to:
- Robotic arms and automation
- Servo motor control
- Coordinate-based movement
- Block coding concepts
- Object handling systems
- Engineering and robotics design
- Real-world industrial robots
The project helps students understand how robotic systems pick, hold, and move objects automatically using programmed instructions.
Grade 5 STEM Activities:What is a Gripper Robot?
A Gripper Robot is a robotic machine that uses a mechanical hand to grab, hold, lift, and move objects.
The gripper works similarly to a human hand and is commonly used in:
- Industrial automation
- Warehouse management
- Packaging systems
- Manufacturing plants
- Robotics research
- STEM education projects
Gripper robots improve speed, accuracy, and safety in many industries.

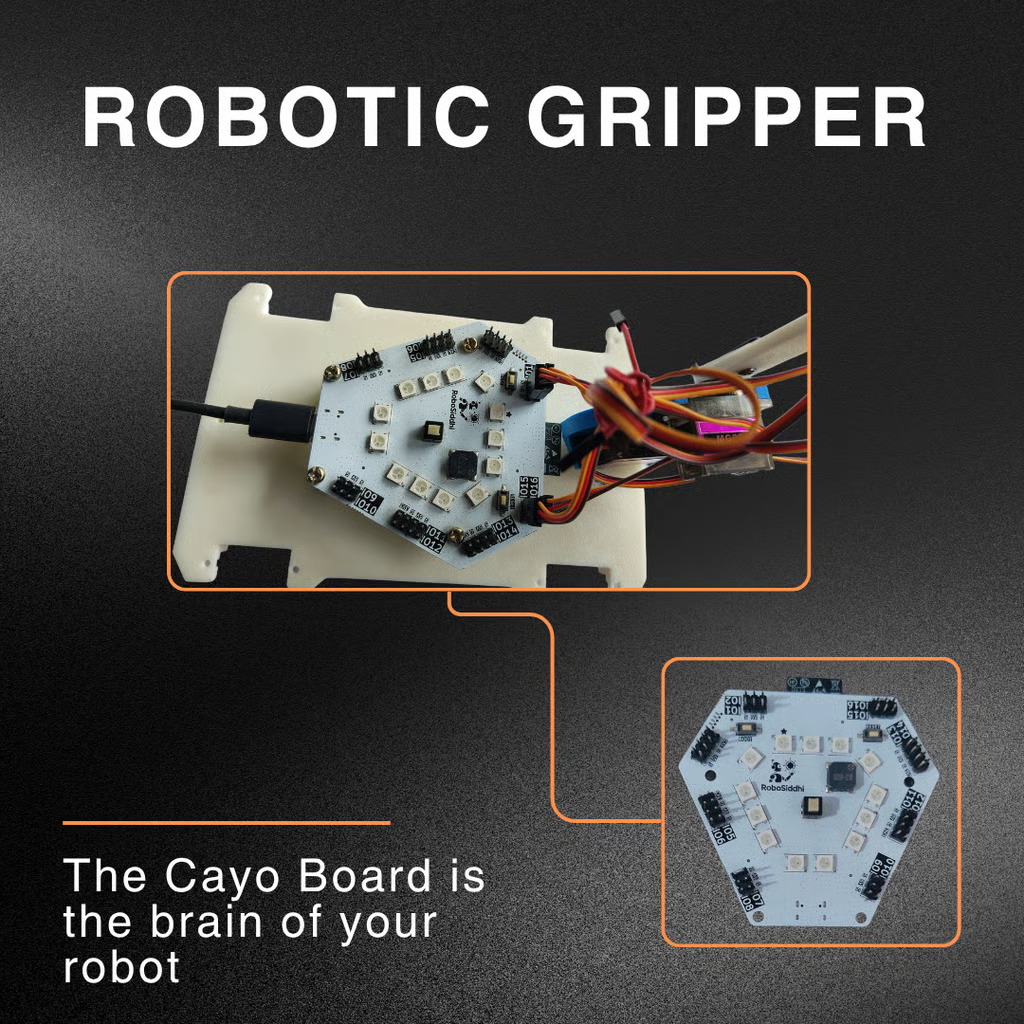

Main Components Used in the Project
| Component | Purpose |
|---|---|
| Gripper Hand | Picks and holds objects |
| Servo Motors | Controls movement and gripping action |
| KAIO Board | Main controller of the robot |
| 3D Printed Chassis | Supports the robotic structure |
| USB Cable | Connects robot to computer |
| Block Coding Software | Programs robot movement |

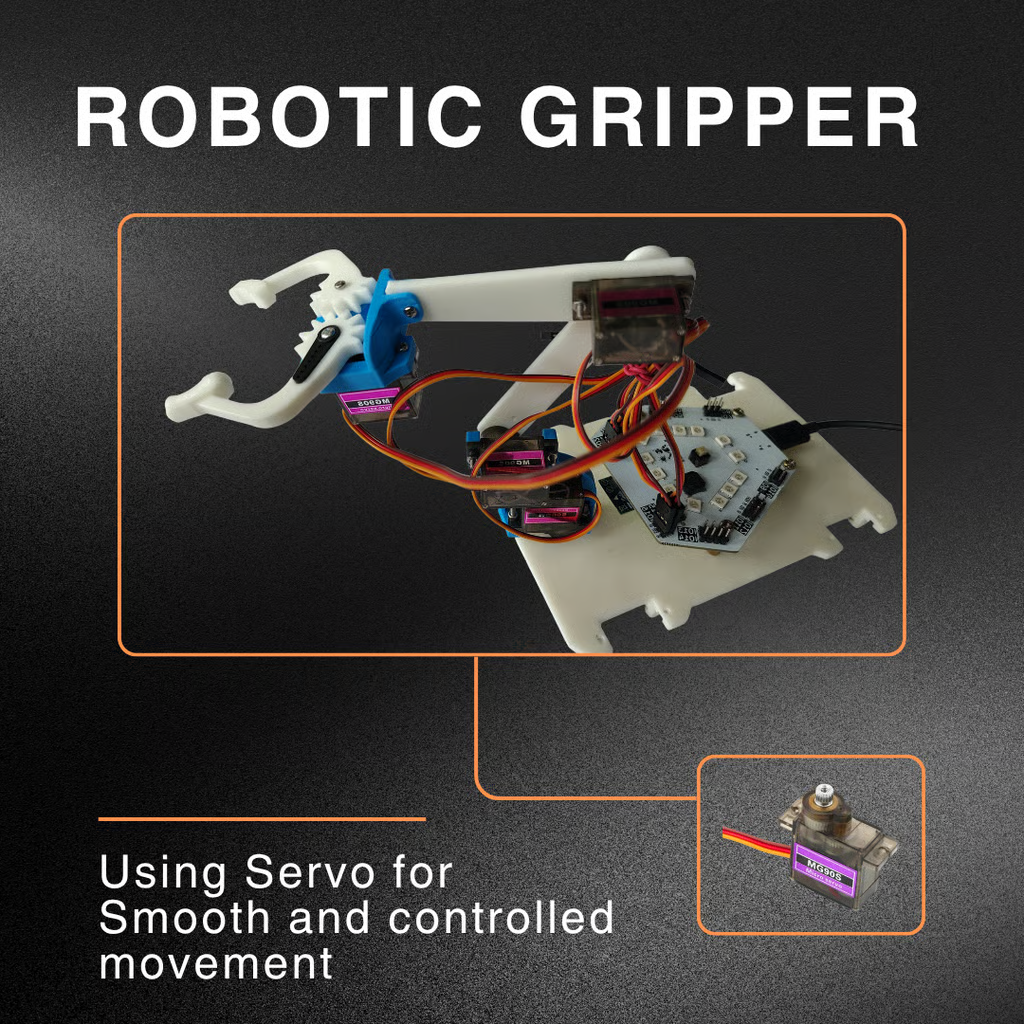

Understanding Servo Motors
Servo motors are special motors designed for precise movement control.
In this project:
- One servo motor opens the gripper
- Another servo motor closes the gripper
- Additional motors help move the robotic arm
Servo motors allow the robot to perform smooth and accurate actions.
How the Gripper Robot Works
The robot follows programmed instructions to move and grip objects.
Basic Working Process
- Move robotic arm to object position
- Open the gripper
- Grab the object
- Close the gripper
- Lift and move the object
- Release the object
This process teaches students how automated robotic systems operate in factories and industries.
Connecting the Gripper Robot to the Computer
The robot is connected to the computer using a USB cable.
After connection:
- The software detects the COM port automatically
- A green indicator confirms successful connection
- Students can upload and run programs
This allows real-time control and testing of the robot.

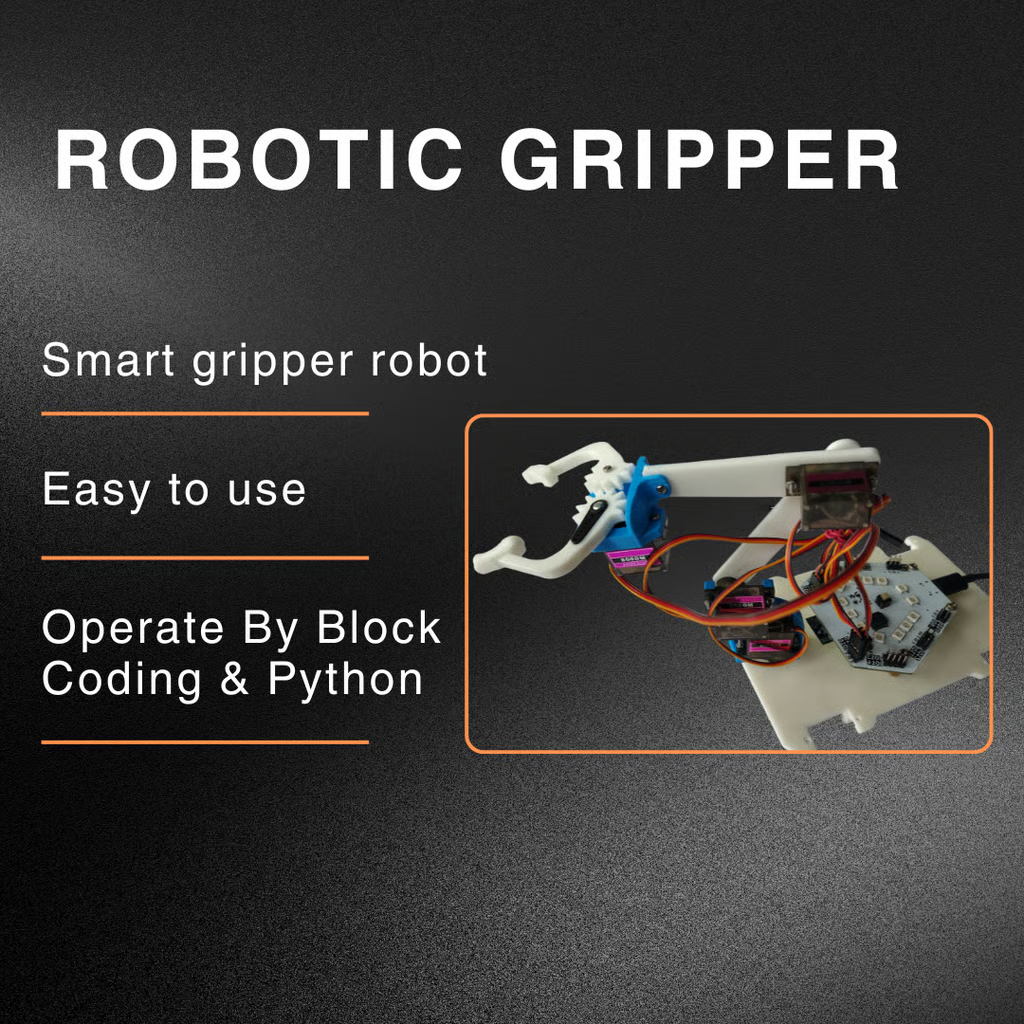

Introduction to Block Coding
The project uses simple block coding software designed for beginners.
Students can drag and drop coding blocks to create robotic actions.
Two important programming blocks are:
| Block | Function |
|---|---|
| Setup Block | Runs once when the program starts |
| Loop Block | Repeats actions continuously |
This structure helps students understand the basics of robotics programming.
Coordinate-Based Movement System
The robotic arm moves using coordinate values.
Example Coordinates
| Axis | Value |
|---|---|
| X | 20 |
| Y | 50 |
| Z | 50 |
These coordinates control the arm’s movement position in 3D space.
Students learn how robots use positioning systems for accurate object handling.
Importance of Delay in Robotics
Robots need time to complete actions smoothly.
A delay block pauses the program temporarily.
Example:
- Delay = 1000 milliseconds
- Equivalent to 1 second
Delays help synchronize movements properly.
Gripper Open and Close Programming Logic
The gripper is controlled through block coding commands.
Example Action Sequence
| Action | Description |
|---|---|
| Move Arm | Robot moves to target position |
| Open Gripper | Gripper fingers open |
| Delay | Wait briefly |
| Close Gripper | Object is held securely |
This sequence creates an automated gripping system.
Programming Flow of the Robot
Setup Function
The setup section:
- Starts motors
- Initializes robot systems
- Runs only once
Loop Function
The loop section:
- Repeats robotic actions
- Controls continuous movement
- Runs until stopped manually
Real-Life Applications of Gripper Robots
Gripper robots are widely used in modern industries.
Factory Automation
Robots move products quickly and safely on production lines.
Packaging Industry
Robotic grippers pack boxes and materials automatically.
Warehouse Robotics
Automated robots help organize and transport items.
Medical and Research Labs
Some robots use grippers for laboratory and medical applications.
STEM Learning Benefits for Students
This Grade 5 STEM Activities project helps students:
- Understand robotics technology
- Learn automation concepts
- Improve problem-solving skills
- Develop logical thinking
- Explore engineering principles
- Practice beginner coding
Hands-on robotics projects make STEM learning more interactive and engaging.
Grade 5 STEM Activities: Safety Instructions
While performing this robotics activity:
- Check all wiring carefully
- Avoid touching moving motors
- Keep electronic components dry
- Use adult supervision if needed
- Handle the robotic arm carefully during operation
Safety is important during robotics experiments.
RoboSiddhi – Supporting STEM and Robotics Education
https://robosiddhi.shop/robosiddhi-robotic-gripper
RoboSiddhi provides robotics kits, sensors, STEM learning tools, coding boards, and educational electronics products for students and schools.
Students can explore:
- Robot kits
- Flame sensors
- Coding boards
- STEM learning materials
- DIY robotics projects
- Electronics components
RoboSiddhi helps children learn robotics through creative hands-on STEM education.
Final Thoughts
This Grade 5 STEM Activities Gripper Robot Project is an exciting introduction to robotics, automation, and engineering design. Students learn how robotic arms and grippers work using servo motors, block coding, and coordinate-based movement systems.
By building and programming the robot, students gain practical experience in STEM learning while exploring real-world applications of robotics technology.
Hands-on projects like this encourage creativity, innovation, and future interest in robotics, coding, and engineering careers.
